TMotion 6DOF delivers a new level of realism to your simulator.

With a compact design, it delivers a wide range of motion while maximizing a decoupled and symmetric workspace. It moves high payloads with responsive motion synchronized for VR applications.

Ultra-compact <1m footprint delivers widest range of motion in its class
Vertically integrated with Traxara’s TDrive unified haptics and motion
Ultra-responsive, low-latency motion for the most demanding applications
Easily connect with game engines and flexible developer SDK
VR ready with synchronized motion

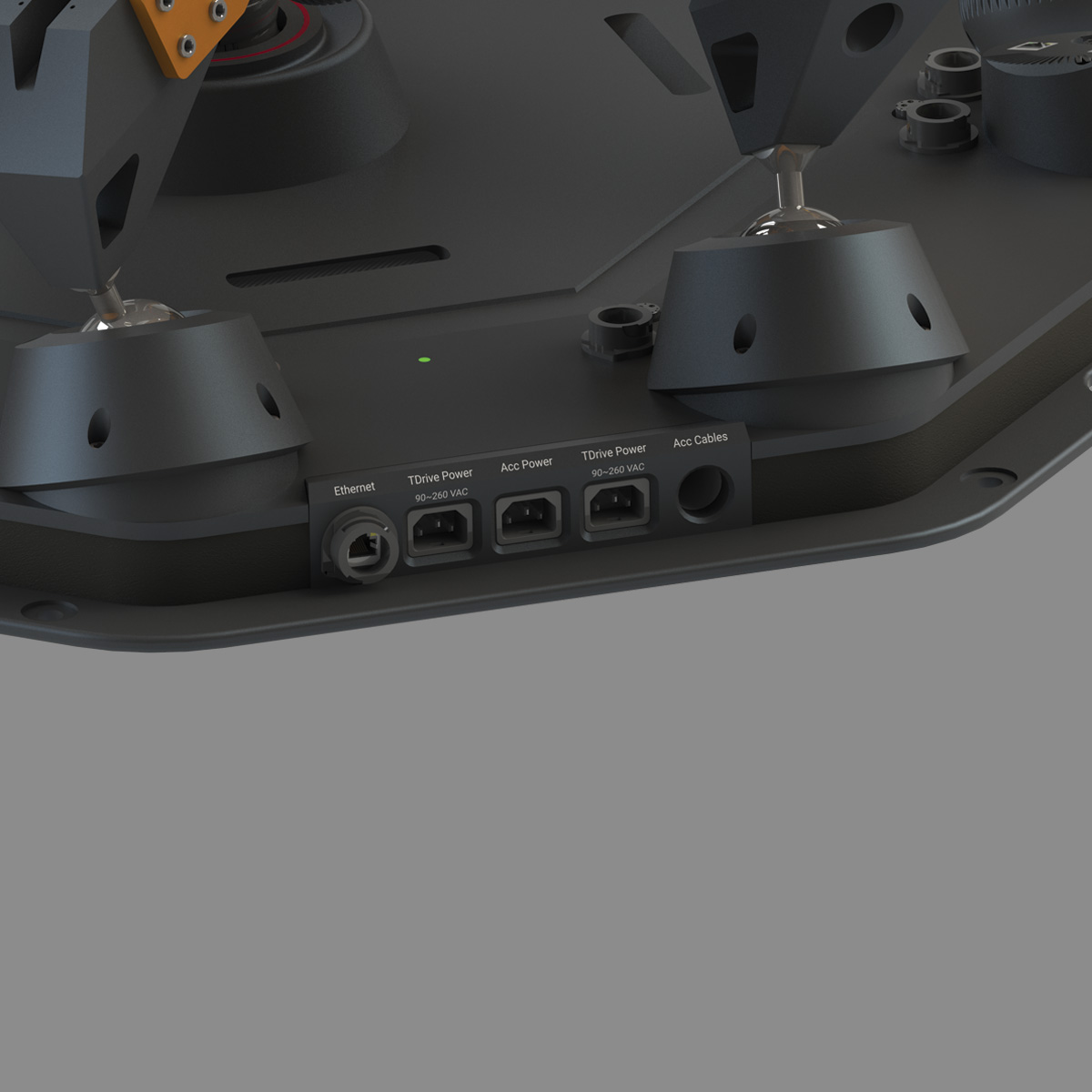

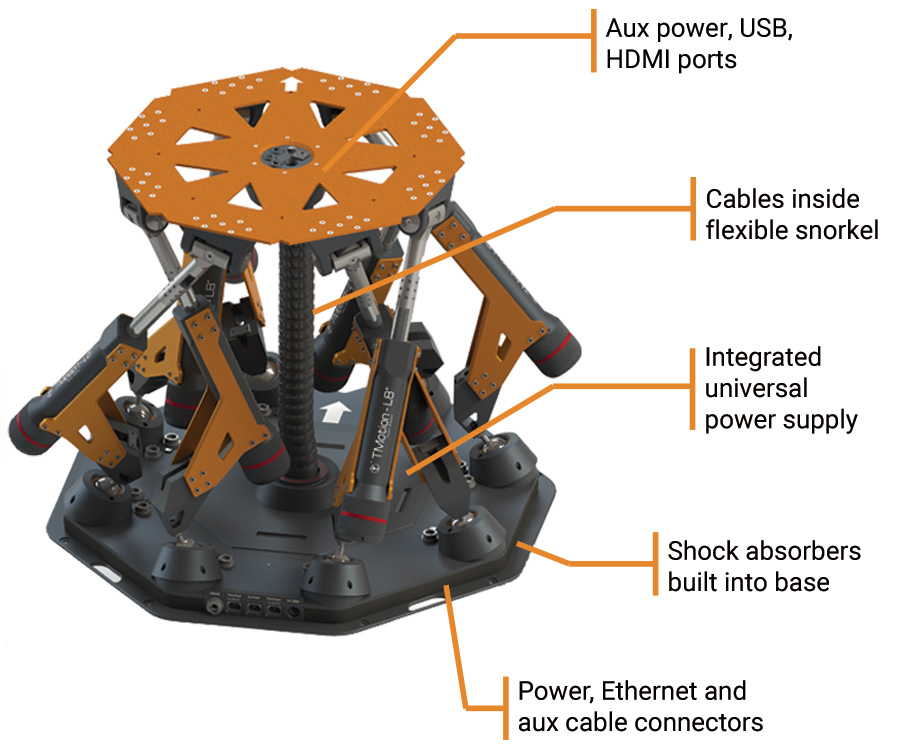

Fully integrated power and control electronics

Fits any simulator application.

TMotion 6DOF is design to fit seamlessly into your simulator application. Reconfigurable and plug-and-play for flight, driving, maritime and other simulator applications.

Ultra-low latency response
Large near-symmetric workspace
Highly decoupled kinematics
High range of yaw at 122 degrees
High velocity and ±4g accelerations
Payload 450kg with 3000kg max lift
Quiet and energy efficient
Ultra compact base <1m diameter
Easy universal power source

Traxara Helps to Integrate Your Solution

Together we will realize your bold ambitions. Traxara provides expert support and services for both software and hardware integration of TMotion into your simulator application.

Seamless Integration

Motion is not a game to us. We get you moving fast with supporting documentation, training, and implementation services. Our motion and haptics experts can help you create incredible realism. This is possible because TMotion outperforms game-technology – it is built for simulation. It combines responsive, high-performance hardware with extensive motion processing software. Contact us to learn just how easy it is to add motion to your simulation.

The Right Motion

Motion sickness is all too common with gaming-technology. That’s because of slow response and low speed/acceleration of actuators and inadequate motion processing – it all just gets washed-out and not in sync with the simulation. TMotion is completely different, with industry leading <1ms response, high speed and accelerations and long stroke lengths. This means you can render realistic motion without motion induced sickness.

Custom Configurations

TDrive provides standard multi-DOF configurations by combining multiple actuators and the TDrive framework. We can also provide custom configurations for specialized motion applications. 1 to 6 DOF motion systems can be created with TMotion hardware and custom software extensions. Our standard API offers extensive features for motion processing and cueing, and we can address your specific needs through custom extensions.

Unbeatable performance.

TMotion combines high load with high speed/accelerations and the advanced TDrive software toolkit.

Range of Motion	Surge 550 mm Sway 550 mm Heave203 mm Roll42 deg Pitch42 deg Yaw122 deg

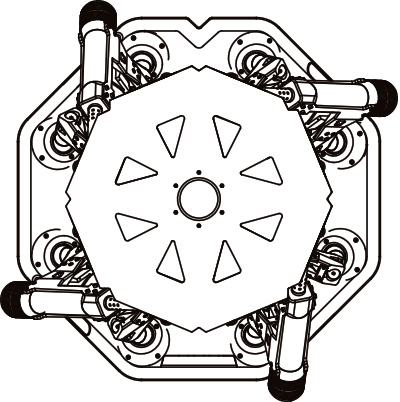

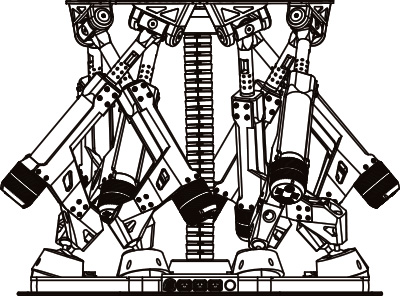

Footprint	90 cm diameter, 70 cm height
Payload	Recommended 450 kg, with 3000 kg maximum vertical lift
Acceleration	Exceeds ±4g with payload
Translation Speed	Surge and Sway 750 mm/s Heave 300 mm/s
Rotational Speed	Roll and Pitch 57 deg/s Yaw 130 deg/s
Response Time	<0.5 ms from API command
Communication	10 kHz rate through Ethernet
Safety	Multi-layer hardware and software architecture with hardware e-stop
Power Supply	90-260 V, 50-60 Hz (Single Phase)
